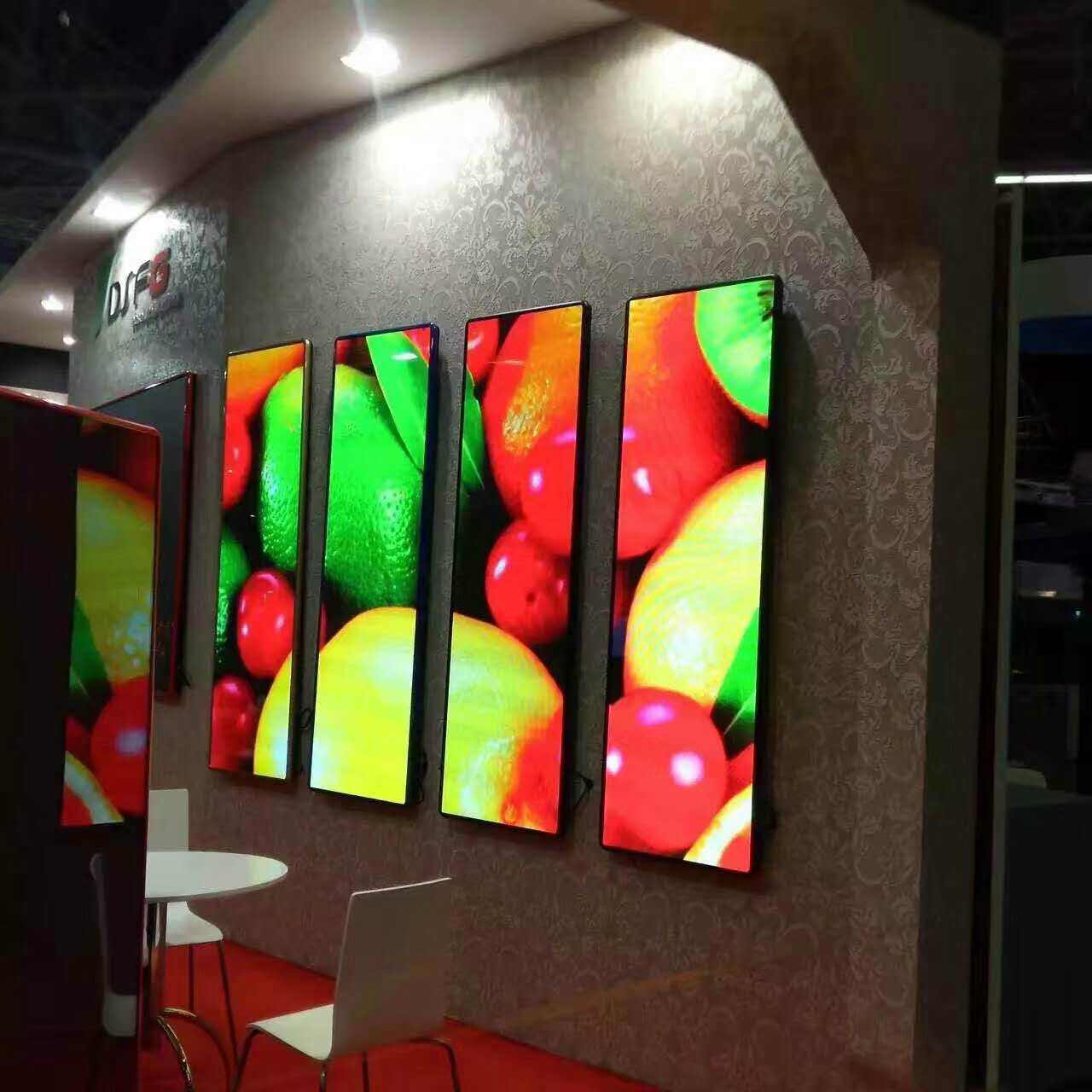

P2.5 LED Advertising Machine

Product Overview

The P2.5 LED Advertising Machine by Brandon Optoelectronics is a high-definition visual solution engineered for indoor commercial environments. As a source manufacturer with 13 years of technical expertise, we have optimized this series for stability, ease of installation, and visual impact. These displays utilize high-precision die-cast aluminum cabinets, ensuring excellent flatness and seamless splicing. With a balanced pixel pitch, this series delivers clear imagery at a cost-effective price point, making it an ideal choice for retail stores, corporate lobbies, and information centers.

Core Specifications

• Product Type: Indoor Full-Color LED Advertising Machine
• Pixel Pitch: P2.5
• Pixel Density: 160,000 dots/㎡
• Module Resolution: 64×64 dots
• Cabinet Material: Die-cast Aluminum
• Brightness: 800-1500 nits (Adjustable)
• Refresh Rate: ≥3840Hz
• Driving Method: Constant Current
• Frame Rate: 60Hz / 50Hz
• Lifespan: ≥100,000 hours
• Operating Voltage: AC 110V / 220V
• Protection Level: IP40 (Front)

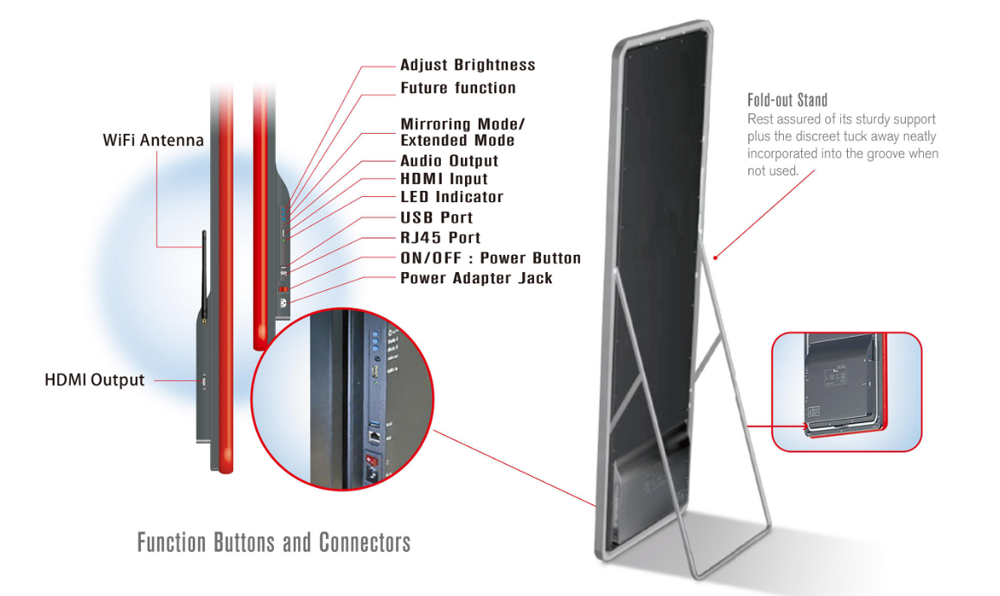

• Special Features: Front/Rear Maintenance, Seamless Splicing, GOB Protection Optional

Application Scenarios

• Retail Stores & Malls: Ideal for showcasing dynamic advertisements, product launches, and promotional content to attract customer attention.
• Corporate Lobbies & Offices: Serves as a digital receptionist or information hub, displaying company news, greetings, and directional information.
• Banking & Financial Institutions: Used for queue management systems, interest rate displays, and financial news updates.
• Hospitality & Restaurants: Functions as a digital menu board or event scheduler, enhancing the guest experience with vibrant visuals.

Installation Environment

• Environmental Requirements: Suitable for dry, ventilated indoor environments. Avoid direct sunlight and rain exposure.
• Load-Bearing Conditions: Ensure the wall or floor stand has sufficient load-bearing capacity and meets safety standards.
• Thermal Management: Utilizes natural or forced air cooling; maintain adequate space around the screen for airflow.
• Power & Cabling: Plan for concealed power and signal cabling to maintain a clean setup and ensure electrical safety.

Viewing Distance

• Optimal Viewing Distance: 2.5 meters to 10 meters
• Recommended Viewing Angle: Within 45 degrees for clear visibility
• Note: This pixel pitch is designed for medium-distance viewing. At distances over 2.5 meters, the image appears cohesive and clear. The high refresh rate ensures flicker-free recording for live streaming or broadcasting.

Adjacent Pitch Comparison

• P2.5 vs P3 vs P4 (Indoor Advertising Context)
• Clarity: P2.5 > P3 > P4
• Cost-Effectiveness: P4 > P3 > P2.5
• Use Case Recommendations
• P2.5: High-end retail or corporate lobbies requiring detailed imagery.
• P3: General-purpose advertising in medium-sized venues balancing cost and quality.
• P4: Large-area installations like warehouses or distant viewing areas where cost efficiency is prioritized.

Selection Guide

• Define Usage: Determine if the screen is for fixed installation or rental. Fixed installations benefit from die-cast aluminum for durability.
• Measure Space: Calculate the total area to determine the number of cabinets needed for a seamless visual effect.
• Assess Viewing Distance: Choose the pitch based on the audiences distance. For 2.5-10 meters, P2.5 offers an optimal balance.
• Plan Installation: Select wall-mounted, floor-standing, or suspended methods based on site conditions.
• Budget Consideration: Balance visual requirements with cost, considering that smaller pitches provide higher definition at a higher price point.

Extended Keywords

• Core Terms: P2.5 LED Advertising Machine, Indoor LED Display, Full-Color LED Screen
• Long-tail Terms: High Refresh Rate LED Display, Retail Advertising Screen, Corporate Lobby LED, Digital Menu Board
• Scenario Terms: Storefront Advertising, Information Kiosk, Reception Display
• Attribute Terms: Die-cast Aluminum Cabinet, Seamless Splicing, Front Service, GOB Protection

FAQ

• Q: Is the brightness suitable for a brightly lit store?
  A: Yes. The brightness range of 800-1500 nits is adjustable, ensuring clear visibility under indoor lighting without causing eye strain.
• Q: Does the display support front maintenance?
  A: Yes. It supports both front and rear maintenance, allowing for easy module and power supply replacement in tight spaces.
• Q: What is the recommended viewing distance for P2.5?
  A: The optimal viewing distance for P2.5 is approximately 2.5 meters and beyond, making it suitable for medium-sized rooms and lobbies.
• Q: Can the screen be customized for unique shapes?
  A: Yes. As a source manufacturer, we offer OEM/ODM services to customize curved or special-shaped screens to meet creative project needs.

Conclusion

Brandon Optoelectronics: 13-Year Source Manufacturer, Guaranteed Quality & Innovation

Choosing Brandon Optoelectronics means more than selecting superior products; it means gaining a reliable partner. We believe innovation is the core driver of development. Our products hold national utility and design patents. Based in Shenzhen, we boast a complete R&D, production, and QC system, offering neutral branding and professional OEM/ODM services. Enlighten your vision; let Brandon make every display a focal point.
