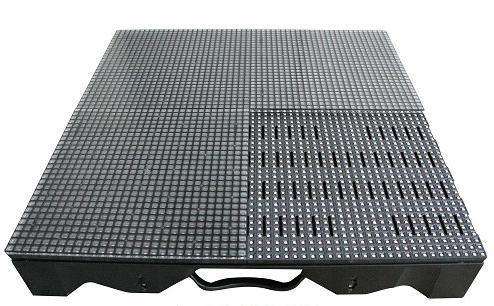

LED Floor Tile Screen

Product Overview

The LED Floor Tile Screen by Brandon Optoelectronics is a specialized interactive display solution engineered for high-traffic indoor environments. As a source manufacturer with 13 years of expertise, we have designed this series to withstand heavy loads while delivering captivating visual experiences. These tiles utilize high-strength tempered glass surfaces with excellent light transmission, ensuring durability and clarity. With a focus on safety and seamless integration, our floor tiles are ideal for creating immersive walkways, interactive gaming zones, and dynamic brand installations in modern commercial spaces.

Core Specifications

• Product Type: Indoor Interactive LED Floor Tile Display
• Available Pitches: P3.91, P4.81, P6.25, P7.82
• Module Resolution: 64×64 dots
• Cabinet Material: Die-cast aluminum with reinforced tempered glass
• Brightness: 1200-2000 nits (adjustable)
• Refresh Rate: ≥3840Hz
• Driving Method: Constant current
• Lifespan: ≥100,000 hours
• Operating Voltage: AC 110V/220V
• Protection Level: IP65 (Front) / IP54 (Rear)
• Load Capacity: ≥1.5 Ton/sq.m
• Special Features: Anti-static, anti-slip surface, front serviceable, seamless拼接

Application Scenarios

• Interactive Gaming Zones: Perfect for malls or entertainment centers where users can interact with the screen via motion sensors or touch.
• Brand Experience Stores: Create immersive walkways that react to customer movement, enhancing brand engagement.
• Exhibition Halls & Museums: Use as dynamic flooring to guide visitors or display thematic content.
• Nightclubs & Entertainment Venues: Transform dance floors into reactive light shows synchronized with music.

Installation Environment

• Environmental Requirements: Suitable for dry, indoor environments with controlled temperature and humidity.
• Structural Support: Requires a flat, stable subfloor capable of supporting the total weight of the installation.
• Ventilation: Ensure adequate airflow beneath the tiles to prevent overheating, especially in large installations.
• Safety Measures: Install protective barriers during setup and provide clear signage to guide foot traffic safely.

Viewing Distance

• Optimal Viewing Distance: 4 meters to 15 meters
• Recommended Viewing Angle: Within 45 degrees for best visual impact
• Note: Designed for both direct overhead viewing and ambient environmental integration. The high refresh rate ensures smooth video playback without flickering, even under camera recording.

Adjacent Pitch Comparison

• P3.91 vs P4.81 vs P6.25 (Indoor Floor Tile Context)
• Clarity: P3.91 > P4.81 > P6.25
• Durability: All models feature reinforced construction, but smaller pitches offer finer detail for closer viewing.
• Use Case Recommendations
• P3.91: High-end retail or museum installations requiring detailed imagery.
• P4.81: General commercial use balancing cost and visual quality.
• P6.25: Large-area installations like dance floors where cost efficiency is prioritized.

Selection Guide

• Define Usage: Determine if the application requires interactivity (e.g., gaming) or static display (e.g., branding).
• Measure Traffic: For high-traffic areas, prioritize higher load-bearing capacity and anti-slip surfaces.
• Assess Viewing Distance: Choose the pitch based on how close visitors will be to the screen. For 4-15 meters, P3.91 to P6.25 offers an optimal balance.

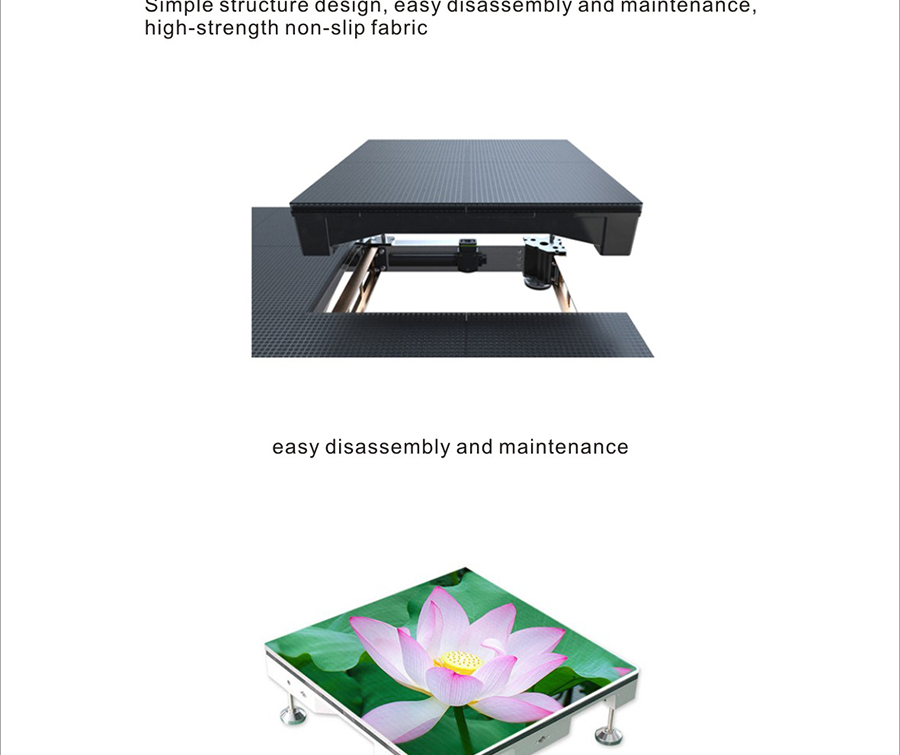

• Plan Maintenance: Select front-serviceable models to simplify repairs without dismantling the entire floor.
• Budget Consideration: Balance visual requirements with cost, considering that smaller pitches provide higher definition at a higher price point.

Extended Keywords

• Core Terms: LED floor tile screen, interactive LED floor, LED dance floor, LED gaming floor
• Long-tail Terms: High-load LED floor tiles, seamless LED floor display, interactive shopping mall floor, museum LED floor installation
• Scenario Terms: Immersive floor display, reactive LED dance floor, brand experience flooring
• Attribute Terms: Tempered glass LED tiles, front-service LED floor, IP65 rated floor screen

FAQ

• Q: Is the surface slippery when wet?
  A: No. The tempered glass surface features an anti-slip coating to ensure safety even in high-traffic or slightly damp conditions.
• Q: Can the tiles be repaired from the front?
  A: Yes. Our design allows for front-serviceable maintenance, enabling quick replacement of modules or power supplies without removing surrounding tiles.
• Q: What is the load capacity of each tile?
  A: Each tile can support a load of at least 1.5 tons per square meter, making it suitable for heavy foot traffic and equipment.
• Q: Can the floor display interactive content?
  A: Yes. When paired with motion sensors or control systems, the floor can display reactive content like ripples, footprints, or games.
• Q: Is the brightness adjustable?
  A: Yes. Brightness can be manually or automatically adjusted to match ambient lighting conditions, ensuring visual comfort.
