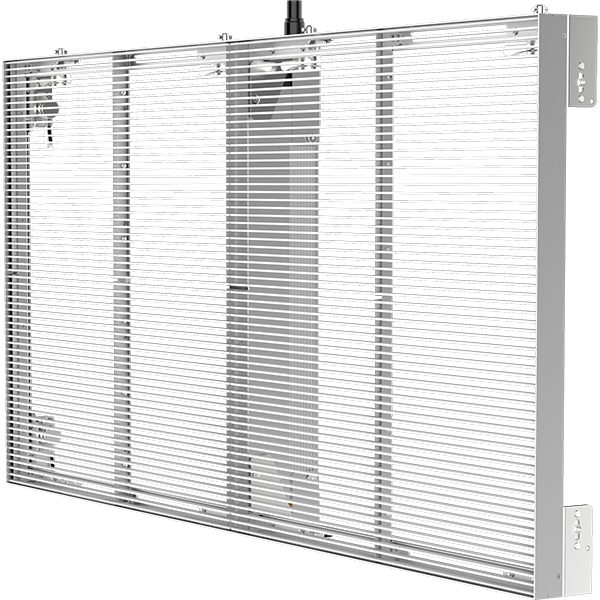

P3.91-7.82 LED Tiles Display

Product Overview

The P3.91-7.82 LED tile display is a high-performance, large-pitch indoor visual solution engineered by Brandon Optoelectronics for medium to long-distance viewing scenarios. As a source manufacturer with 13 years of technical expertise, we have optimized this series for stability, ease of installation, and visual comfort. These displays utilize high-precision die-cast aluminum cabinets, ensuring excellent flatness and seamless拼接. With a balanced pixel pitch range, this series delivers clear imagery at a cost-effective price point, making it an ideal choice for stages, rental events, and expansive commercial spaces.

Core Specifications

• Product Type: Indoor Full-Color LED Tile Display
• Pixel Pitch: P3.91 - P7.82 (Customizable)
• Pixel Density: 65,025 - 256,000 dots/㎡
• Module Size: 256mm × 128mm / 320mm × 160mm (Common Specifications)
• Cabinet Material: Die-cast Aluminum / Profile
• Brightness: 800-1500 nits (Adjustable)
• Refresh Rate: ≥3840Hz
• Driving Method: Constant Current
• Frame Rate: 60Hz / 50Hz
• Lifespan: ≥100,000 hours
• Operating Voltage: AC 110V / 220V
• Protection Level: IP40 (Dust-proof, Static-proof)
• Special Features: Front/Rear Maintenance, Seamless Splicing, GOB Optional

Application Scenarios

• Stages & Performances: Ideal for stage backdrops in theaters, concerts, and corporate events, providing dynamic visual backgrounds for large audiences.
• Rental Events: Designed for touring and rental companies requiring durable, quickly deployable screens for conferences and exhibitions.
• Large Conference Halls: Serves as a main presentation screen for seminars and forums where the audience is seated at a distance.
• Commercial Plazas: Used in shopping malls or chain stores as a central visual attraction to broadcast promotions and brand content.

Installation Environment

• Environmental Requirements: Suitable for dry, ventilated indoor environments. Avoid direct sunlight and rain exposure.
• Load-Bearing Conditions: Ensure the wall or truss structure has sufficient load-bearing capacity and meets safety standards.
• Thermal Management: Utilizes natural or forced air cooling; maintain adequate space around the screen for airflow.
• Power & Cabling: Plan for concealed power and signal cabling to maintain a clean setup and ensure electrical safety.

Viewing Distance

• Optimal Viewing Distance: 4 meters to 15 meters
• Recommended Viewing Angle: Within 45 degrees for clear visibility
• Note: This pixel pitch range is designed for medium to long-distance viewing. At distances over 4 meters, the image appears cohesive and clear. The high refresh rate ensures flicker-free recording for live streaming or broadcasting.

Adjacent Pitch Comparison

• P3.91 vs P5 vs P7.82 (Indoor/Rental Context)
• Clarity: P3.91 > P5 > P7.82
• Cost-Effectiveness: P7.82 > P5 > P3.91
• Use Case Recommendations
• P3.91: High-end stages and medium-sized venues requiring higher definition.
• P5: General-purpose stages and rental events balancing cost and quality.
• P7.82: Large arenas or distant viewing areas where cost efficiency is prioritized.

Selection Guide

• Define Usage: Determine if the screen is for fixed installation or rental. Rental units benefit from die-cast aluminum for durability.
• Measure Space: Calculate the total area to determine the number of cabinets needed for a seamless visual effect.
• Assess Viewing Distance: Choose the pitch based on the audiences distance. For 4-15 meters, this series offers an optimal balance.
• Plan Installation: Select wall-mounted, suspended, or truss-supported methods based on site conditions.
• Budget Consideration: This series offers a superior balance of performance and affordability for medium-distance viewing applications.

Extended Keywords

• Core Terms: P3.91 LED Tile, P7.82 Indoor LED, LED Tile Display
• Long-tail Terms: High Refresh Rate LED Tile, Stage Background LED Screen, Rental LED Display, Indoor Full-Color LED Panel
• Scenario Terms: Stage Backdrop, Conference Hall Display, Commercial Advertising Screen
• Attribute Terms: Die-cast Aluminum Cabinet, Seamless Splicing, Front Service, GOB Protection

FAQ

• Q: Is the brightness suitable for a well-lit conference hall?
  A: Yes. The brightness range of 800-1500 nits is adjustable, ensuring clear visibility under indoor lighting without causing eye strain.
• Q: Does the display support front maintenance?
  A: Yes. It supports both front and rear maintenance, allowing for easy module and power supply replacement in tight spaces.
• Q: What is the recommended viewing distance for P7.82?
  A: The optimal viewing distance for P7.82 is approximately 8 meters and beyond, making it suitable for large venues like auditoriums.
• Q: Can the screen be customized for unique shapes?
  A: Yes. As a source manufacturer, we offer OEM/ODM services to customize异形 screens or special cabinet sizes to meet creative project needs.

Conclusion

Brandon Optoelectronics: 13-Year Source Manufacturer, Guaranteed Quality & Innovation

Choosing Brandon Optoelectronics means more than selecting superior products; it means gaining a reliable partner. We believe innovation is the core driver of development. Our products hold national utility and design patents. Based in Shenzhen, we boast a complete R&D, production, and QC system, offering neutral branding and professional OEM/ODM services. Enlighten your vision; let Brandon make every display a focal point.

Brandon Optoelectronics · Technological Innovation · Quality First · Service Supreme
13-Year Commercial LED Source Manufacturer | Multiple National Patents | Exported to 50+ Countries
Call for Consultation: 4008-115-665 | Mobile: +86 13430965178 (Manager Rao)
Website: www.ledjgc.com

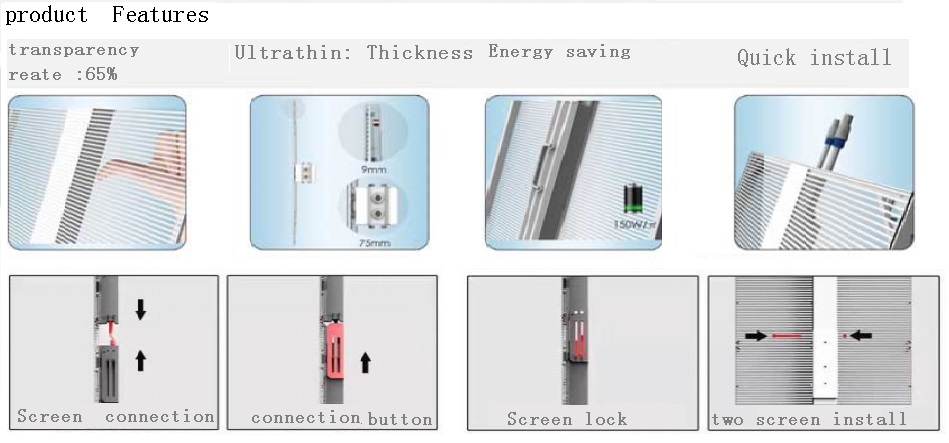

Ultralight：15kg/M2，can be easily installed;
Ultrathin: Thickness 7mm，die casting aluminum cabinet , endurable，not deformation;
Compatible: New structure design，hang up or fixed install， suitable for indoor and outdoor environment;
Quickness: The cabinet  adopts fast locking system and highly installation precision
